We are engaged in manufacturing and supplying high quality Bushes. Our product is manufactured using sophisticated techniques and advanced technology available in the market. It is highly appreciated for its robustness, dimensional accuracy and easy to install. Bushes are available in our factory in various sizes and dimensions. With the assistance of our diligent team, we ensure timely delivery of products to our customers. There is huge variety of bushes. A list of commonly used bushes is displayed here. We provide our patron’s special specification and dimension required bushes.

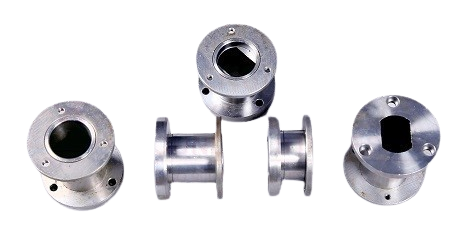

Wooden Match Plate Bush :
Our Bush is fitted on both the ends. Match Plate Bush Round on one side and Match Plate Bush Flat on the other. These Match Plate bushes are precisely machined and are Grind internally & externally to get accurate dimensions.

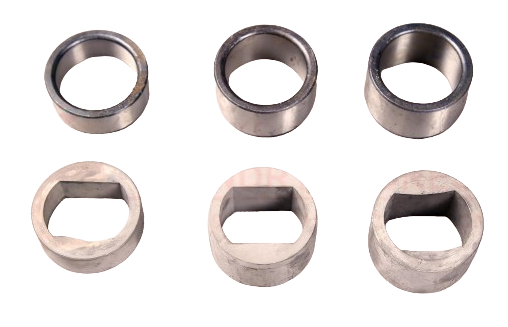

Cast Iron Match Plate Bush :
Our CI bush is fitted on both the ends.
Match Plate Bush Flat on one side and Match Plate Bush Round on the other. These Match Plate bushes are precisely machined and OD Ground and Nitride to 300 to 400 Vickers Hardness to get accurate dimensions.
| D1 | D2 | L |
|---|---|---|
| Ø 35 | Ø 45 | 17 |
| Ø 35 | Ø 45 | 27 |
| Ø 35 | Ø 45 | 38 |
| A / F | R | D2 | L |
|---|---|---|---|
| 25 | 35 | Ø 45 | 17 |
| 25 | 35 | Ø 45 | 27 |
| 25 | 35 | Ø 45 | 38 |
Tuskers Bush With Nut :
We have been the leading manufacturer and supplier of a wide range. These are used for aluminium moulding box. Our products are known for their high persistence and longer service life. Made from premium quality steel material, these products are appreciated for their high precision manufacturing and accuracy in performance. Our range of Tuskers Bush for Foundry is in high demand in the foundry industry for usage in Moulding Boxes. We make sure to test these products as per the international standards of quality before they are made available for sale.

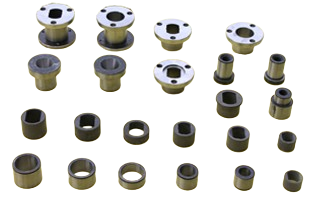

Moulding Box Bush :
It is attached to Foundry Moulding Boxes. Where the Closing pins inserted in Moulding boxes. It's perfectly helps to moulding box can’t move anywhere on the sand filling and pouring time. These Moulding box bushes are precisely machined and OD & ID grinded for accurate dimensions.
| Diameter | Diameter | Length |
|---|---|---|
| Ø 19 | Ø 30 | 20 |
| Ø 19 | Ø 30 | 27 |
| Ø 19 | Ø 30 | 40 |
| Ø 25 | Ø 35 | 27 |
| Ø 25 | Ø 38 | 27 |
| A / F | Round | Diameter | Length |
|---|---|---|---|
| 18 | 24 | Ø 30 | 24 |
| 19 | 24 | Ø 30 | 20 |
| 21 | 30 | Ø 38 | 20 |
| 21 | 30 | Ø 38 | 27 |
| 21 | 30 | Ø 38 | 40 |
| 22 | 27.5 | Ø 35 | 22 |
| 27 | 35 | Ø 50 | 35 |
| 35 | 40 | Ø 60 | 35 |

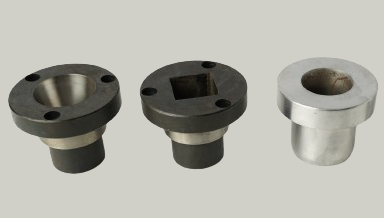

Machine Table Bush or Tapper Bush :
It fitted on to the Jolt Machine Table, Where the Guide pins inserted through Mould Box and Match plate sits on perfectly with the help of the precisely machined taper. These Foundry bushes are precisely machined and are Grind internally & externally to get accurate dimensions.
Threaded Bush :
It fitted fitted on to the Jolting Machine Table, Which helps in fastening the match plate to the match plate. These Foundry bushes are precisely machined and are Grind externally to get accurate dimensions.
