Ceramic Filters

product-images

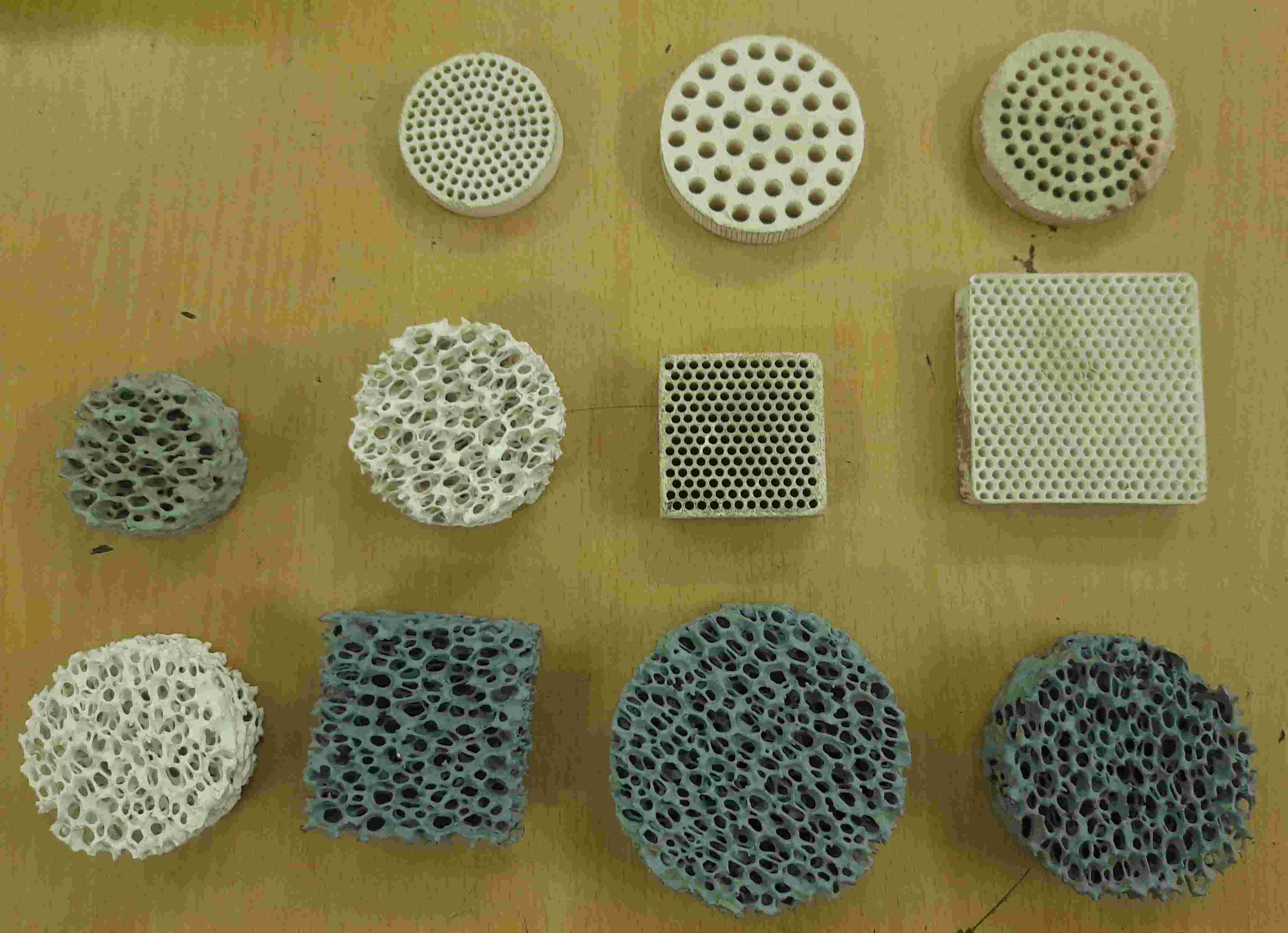

We are proudly introducing our wide range of product Ceramic Filters. Foam ceramic filter using German imported polyurethane foam sponge as a carrier, silicon carbide mainly squeezed into the foam sponge, and then squeeze out the slurry, the slurry around the foam fibre, after drying, baking at high temperature, polyurethane thermal decomposition, leaving foam ceramic products, It’s also known as a Silicon Carbide Foam Ceramic Filter.

The silicon carbide foam ceramic filter, with the three-dimensional mesh interconnection structure of foam sponge, can make metal liquid reflect rectification, mechanical screening, filtration cake, adsorption and other filtration mechanisms to effectively improve the purity of metal liquid, reduce waste rate, reduce mechanical processing loss, thus improve production efficiency and reduce production cost.

Silicon carbide foam ceramic filter has high strength, good thermal stability, larger than surface area and high size accuracy. It is mainly used to filter and purify the filtration of ductile cast iron, ash cast iron, aluminium, copper and other alloy metal liquid, effectively remove large inclusions in metal liquid, adsorb small magazines, reduce the content of gas and harmful elements in metal liquid, improve the metal matrix organization, and improve the mechanical properties of castings.

Product Performance :

  • Reduces the waste rate of inclusion defects.
  • Improves mechanical performance of castings.
  • Improves the casting process production rate.
  • Has a wide range of applicable processes and can be used on a large scale for the assembly line and single-piece manual modelling environment.

SPECIFICATIONS

STANDARD SIZES OF CERAMIC FILTERS
SR.NO Size Shape Thickness Hole Dia No. of Holes
1 35mm Round 8mm 3mm 39
2 37mm Round 7mm 2mm 49
3 47mm Round 7mm 3mm 58
4 50mm Round 12.5mm 3mm 73
5 60mm Round 10mm 3mm 95
6 60mm Round 10mm 3mm 104
7 60mm Round 10mm 2mm 144
8 66mm Round 10mm 4.5mm 61
9 68mm Round 10mm 3mm 145
10 50/52mm Round Taper 15mm 3mm 42
11 62/64mm Round Taper 10mm 2.5mm 196
12 70/66mm Round Taper 10mm 5mm 24
13 70/66mm Round Taper 10mm 5mm 27
14 25x25mm Square 10mm 2.25mm 39
15 39x39mm Square 12mm 2mm 143
16 40x40mm Square 12mm 2mm 168
17 40x40mm Square 12mm 2mm 188
18 40x40mm Square 10mm 3mm 114
19 40x40mm Square 12mm 1.7mm 264
20 50x50mm Square 12.5mm 1.9mm 310
21 50x50mm Square 20mm 2mm 294
22 50x50mm Square 20mm 3mm 104
23 55x55mm Square 12.5mm 2mm 389
24 55x55mm Square 12.5mm 2.5mm 261
25 55x55mm Square 12.5mm 2.3mm 279
26 75x75mm Square 12.5mm 2.5mm 585
27 75x75mm Square 20mm 2.5mm 513
28 100x100mm Square 20mm 2mm 1050
29 135x135mm Square 20mm 5mm 493
30 75x100mm Rectangle 21mm 2mm 850
31 50x75mm Rectangle 15mm 2mm 377
32 50x100mm Rectangle 20mm 3.5mm 219
33 50x100mm Rectangle 12mm 2.25mm 305
34 50x100mm Rectangle 20mm 2mm 507
